Choose a standard Pilates reformer when repeatable group classes and floor capacity are the priority. Choose a reformer with tower when the same station must support carriage work and vertical spring exercises. Reserve a Cadillac combo for studios that can justify a dedicated station for private, advanced or instructor-led functional work. Many mixed-format studios need all three, but not in equal numbers. Start with the timetable, instructor skills, room dimensions and revenue model; then compare the exact product specification, accessories, installation and service plan.
This guide compares three maple models used in P.E.Pilates studio planning: the WD-MS-003 standard reformer, WD-MS PLUS reformer with tower and WD-M MAX Cadillac combo. Model dimensions come from the supplied technical sheets. Suggested operating clearances are planning allowances rather than product dimensions or universal safety rules.
Pilates Reformer vs Tower vs Cadillac at a Glance
| Buying question | WD-MS-003 Reformer | WD-MS PLUS with Tower | WD-M MAX Cadillac Combo |
|---|---|---|---|
| Primary studio role | Repeatable reformer classes and general private sessions | Reformer work plus vertical spring programming at one station | Dedicated private, advanced and supervised functional work |
| Listed product size | 2285 × 685 × 355 mm | Base listed as 2285 × 685 × 390 mm; confirm assembled tower height | 2160 × 685 × 2160 mm |
| Listed equipment weight | 92 kg | 128 kg | 166 kg |
| Planning allowance supplied for this project | About 3.0 × 1.5 m per station | About 3.0 × 1.7 m, plus confirmed overhead clearance | About 3.2 × 2.0 m, plus overhead and perimeter access |
| Installation workload | Lower: assemble supplied components and level the frame | Moderate: install and inspect tower structure, springs and attachments | Higher: assemble the full frame and check multiple bars, spring points and connections |
| Best starting point | Group-focused studio | Semi-private or mixed-program studio | Private-training or specialist zone |
If you are still estimating station count, use our Pilates studio space and class-capacity guide before committing to a floor plan.

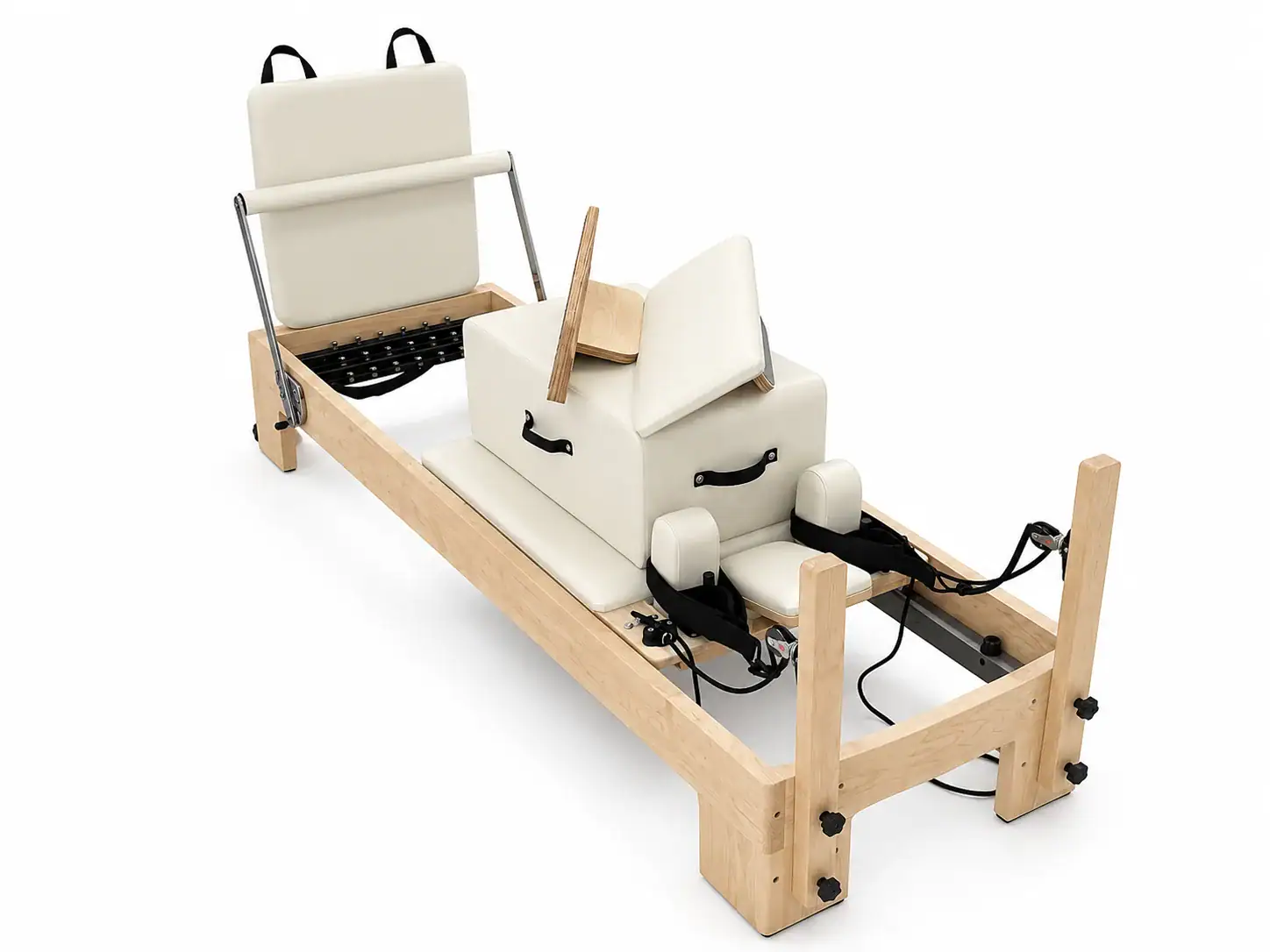

1. Standard Pilates Reformer: Build the Class Schedule First
A standard reformer is usually the most straightforward way to build a room around scheduled classes. Every station follows the same setup, instructors can move between clients more easily, and the room does not need a tall frame at each position. That makes the WD-MS-003 the logical volume model in a studio where six to eight people train together.

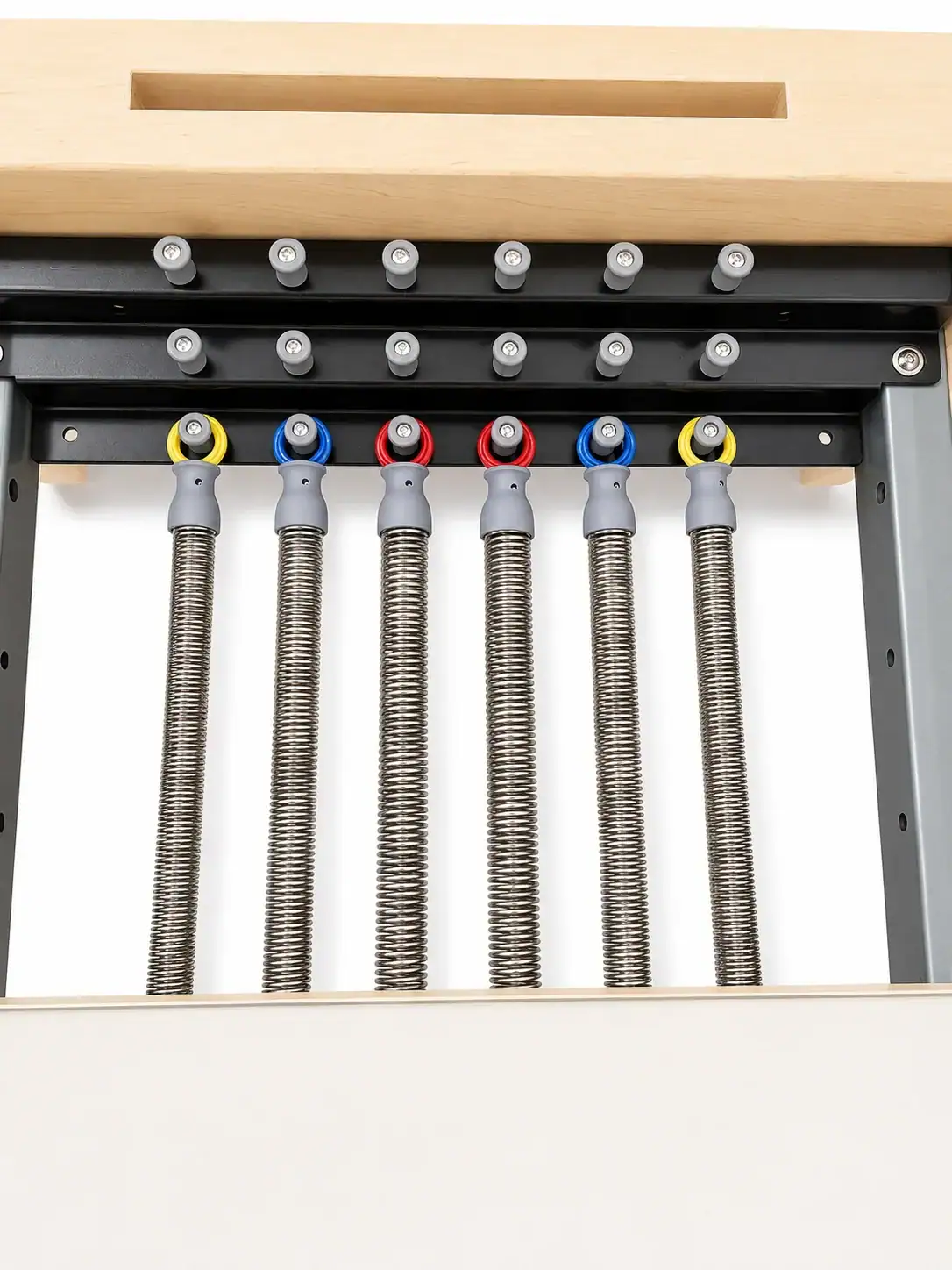

The specification lists a 3.5 cm maple frame, aluminum-alloy rail, six springs, jumpboard, sitting box, standing platform, ropes, pulleys, straps and other standard components. Confirm the final accessory list on the purchase order; a family name or showroom photograph is not a substitute for the signed configuration.
Choose the standard reformer first when the business model depends on frequent group sessions, consistent station layout and a lower assembly burden. It can still support private instruction, but it does not provide the vertical spring frame of the other two options.

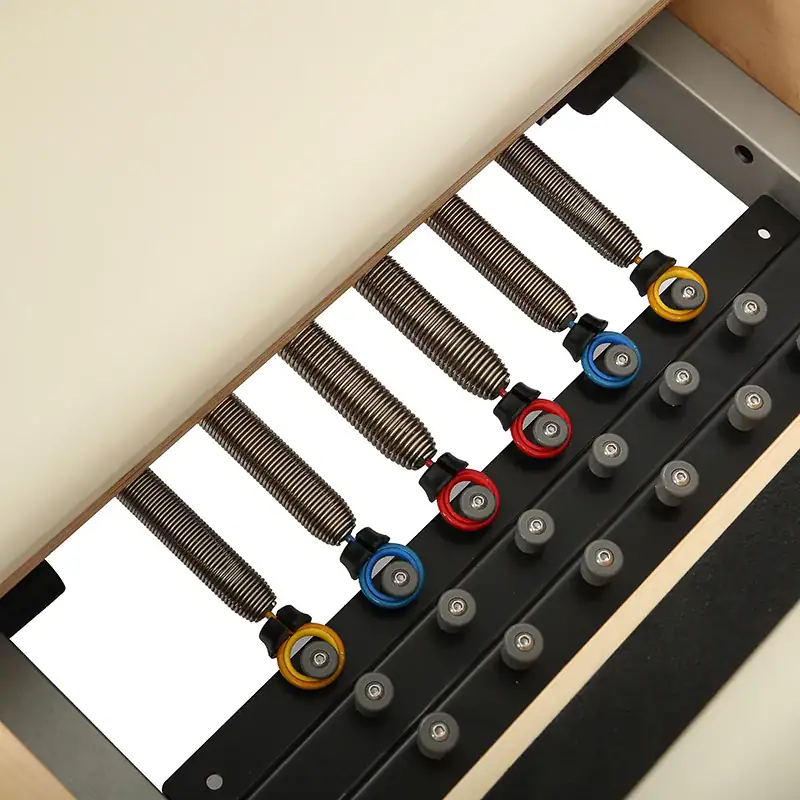

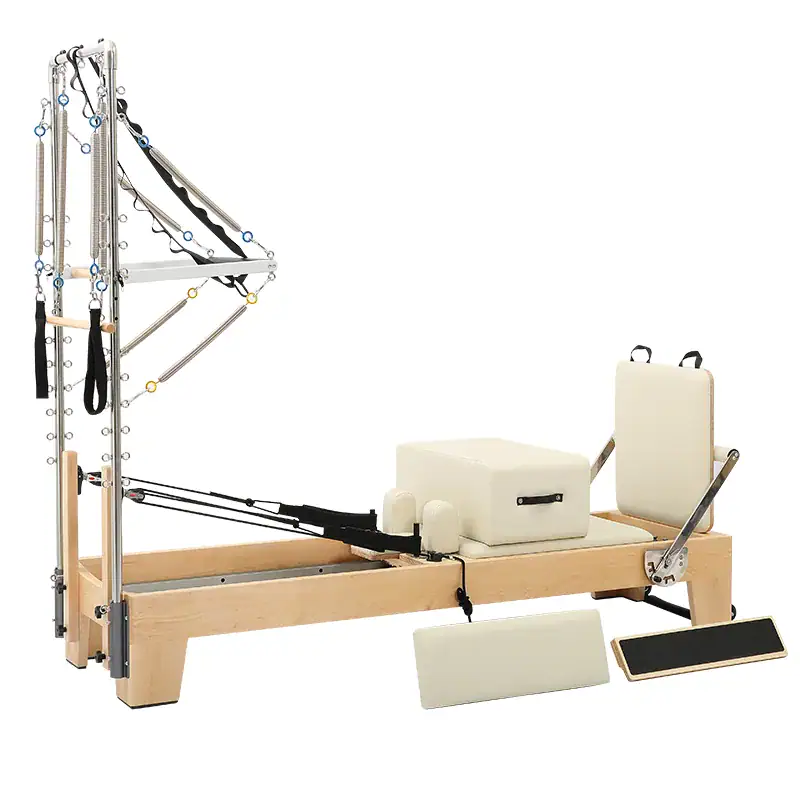

2. Reformer with Tower: More Programming from One Footprint

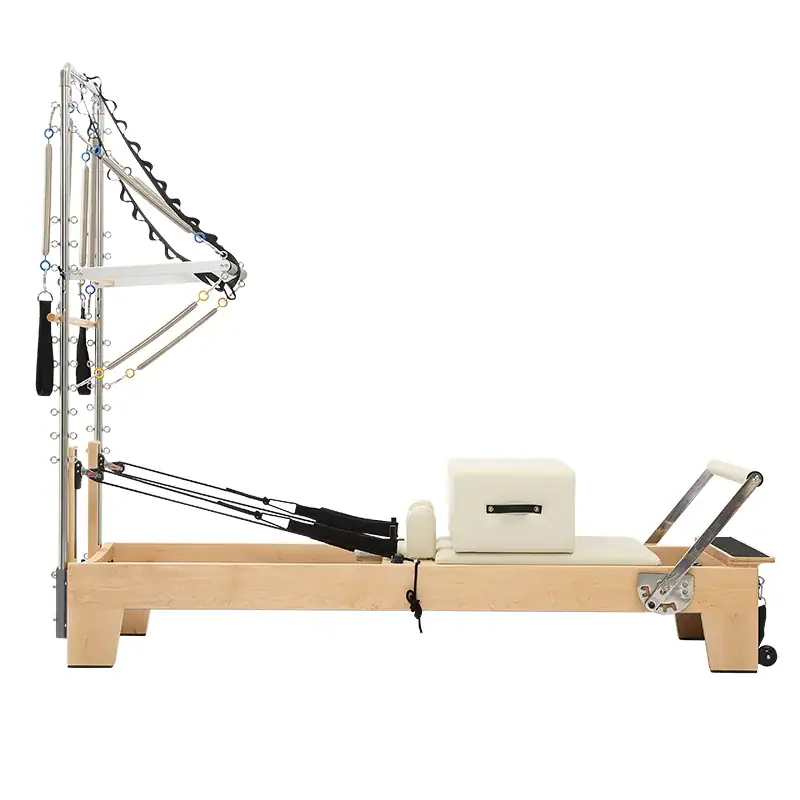

A reformer with tower adds vertical spring attachment points and bar-based work to the carriage station. For a semi-private room, that can expand programming without allocating a separate full Cadillac to every client. The tradeoff is operational: instructors need a clear setup sequence, accessories need storage, and the tower, pins, springs and attachment points add inspection steps.
The WD-MS PLUS sheet lists the reformer base at 2285 × 685 × 390 mm, but it does not state the complete assembled tower height. Confirm that measurement before approving ceiling clearance or placing the station under lights, ducts or beams. The WD-MS PLUS tower is removable, allowing the reformer base to be used without the tower when the studio needs to change the station setup. The removal procedure, hardware storage and mat-conversion contents still need to match the supplied manual and order configuration.
Choose a reformer with tower when one station must move between conventional reformer sessions and supervised spring-assisted work. It is particularly relevant to two-to-four-person semi-private formats, provided the instructors are trained for the intended exercises and the room has verified overhead clearance.
For a closer view of the equipment category, see the existing Pilates reformer with tower page.

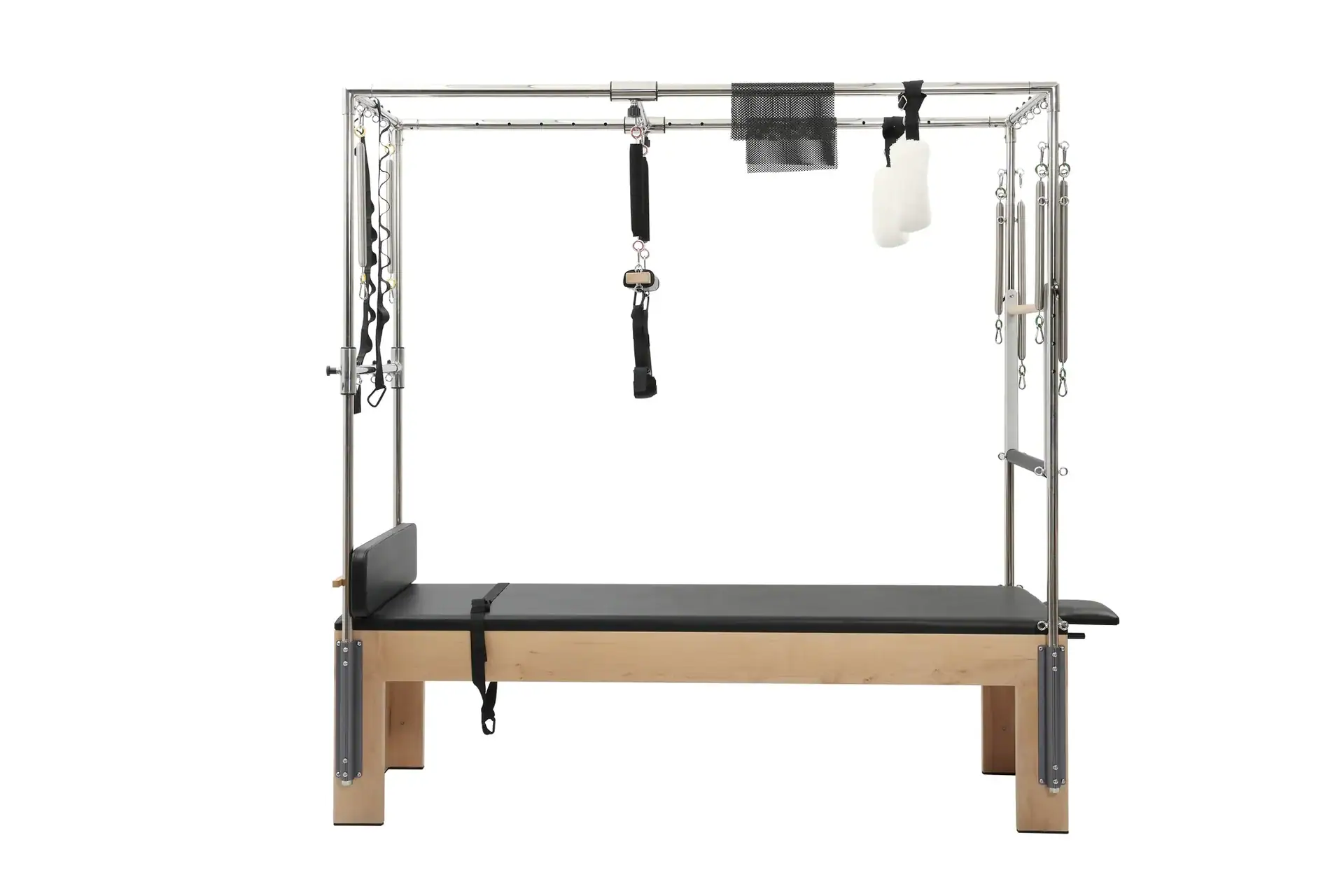

3. Cadillac Combo: A Dedicated Specialist Station

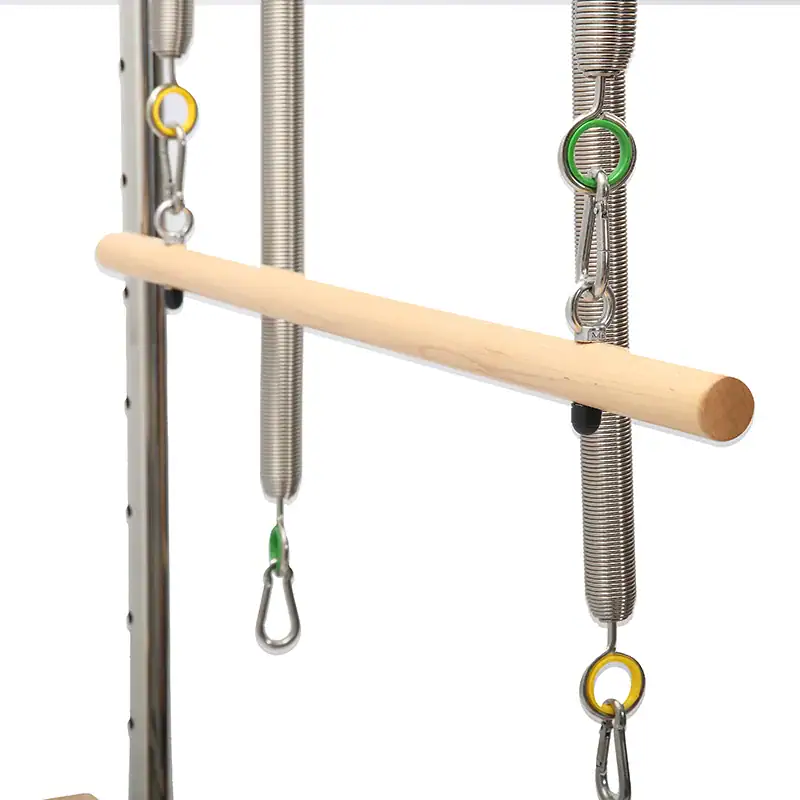

A Cadillac combo occupies a different role. The full frame creates more attachment positions and supports a broader range of instructor-led spring, bar and supported movement setups. In a commercial studio, that capability is most valuable when the timetable includes private training, assessment-led sessions or carefully supervised specialist programming.

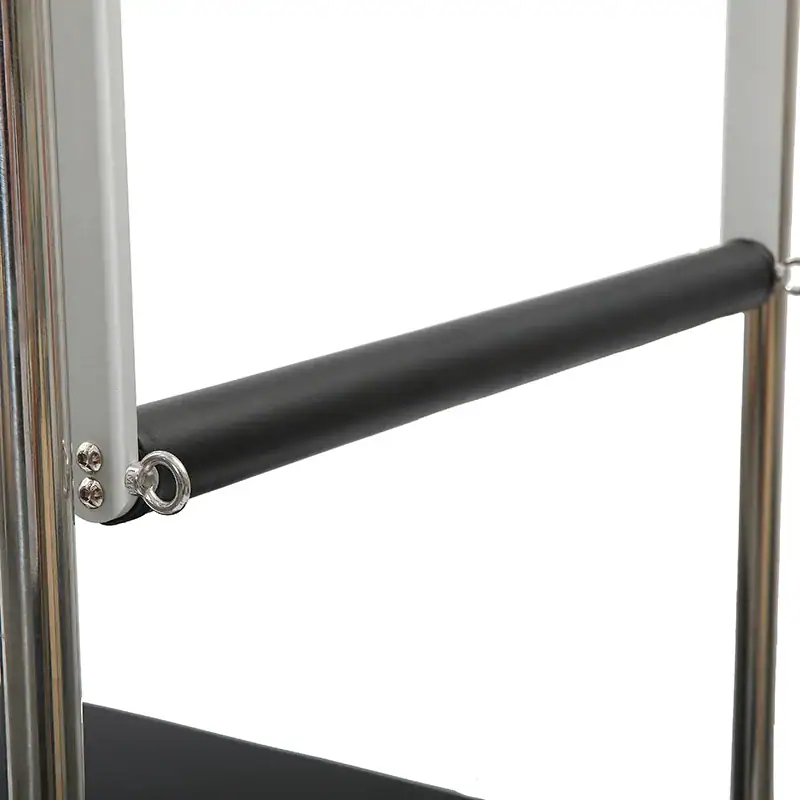

Push-through bar and frame connections require an installation and safety check before use.
Accessory and spring contents must match the order list; the supplied WD-M MAX sheet does not contain a complete accessory schedule.
Choose a Cadillac combo when the studio can protect a dedicated zone and has qualified instructors who will use its additional capability. Buying several units without a matching timetable can consume floor area and capital without improving class capacity. Review the broader Cadillac Pilates equipment category before comparing configurations.
Which One Does Your Studio Need?
| If this describes the studio… | Evaluate first | Why |
|---|---|---|
| Most revenue comes from six-to-eight-person reformer classes | Standard reformer | More repeatable stations and simpler room flow |
| The timetable mixes reformer sessions with vertical spring work | Reformer with tower | Two programming modes at one station |
| Private sessions and specialist work justify a dedicated zone | Cadillac combo | Full-frame attachment and bar options |
| The studio serves group, semi-private and private clients | Mixed equipment plan | Match equipment capability to each revenue zone |
| Ceiling height or room circulation is uncertain | Standard reformer until measured | Avoid approving tall equipment before a measured layout |
Do not decide from product names alone. “Tower,” “Cadillac combo” and “conversion” can describe different structures and accessory packages across manufacturers. Compare the exact drawing, assembled dimensions, spring and bar list, safety components, installation method and approved manual for the model being ordered.
Space Planning: Equipment Size Is Not the Training Zone
The frame dimensions tell you whether the product fits through a plan; they do not define safe circulation or exercise clearance. For early planning in the supplied project, the studio allowed approximately 3.0 × 1.5 m for a standard reformer, 3.0 × 1.7 m for a tower station and 3.2 × 2.0 m for a Cadillac combo. These are project planning allowances, not universal standards.
- Measure walls, columns, mirrors, doors, radiators, lights and ceiling obstructions.
- Include the instructor’s working side and the full movement envelope of bars and accessories.
- Keep storage outside client circulation wherever possible.
- Confirm delivery access, crate handling and assembly space before shipment.
- Review the finished layout against local building, accessibility and fire-safety requirements.
Cost, Installation and Daily Maintenance
The purchase price rises or falls with the exact frame, springs, bars, mat conversion, accessories, customization, packaging and shipping terms. A tower or full Cadillac also changes installation labor and the number of components that must be checked. There is no reliable universal price gap that applies to every supplier or destination.
| Operating factor | Standard reformer | With tower | Cadillac combo |
|---|---|---|---|
| Daily reset | Carriage, ropes, footbar and accessories | Reformer reset plus tower springs and bars | Full station, bars, springs, straps and frame attachments |
| Periodic inspection | Rails, wheels, springs, ropes, upholstery and fasteners | Standard checks plus uprights, pins and vertical attachment points | Most extensive: full frame, crossbars, moving bars, springs and connections |
| Installation documentation | Assembly and leveling record | Tower installation and component checklist | Full-frame assembly and stability checklist |
| Downtime risk | Affects one high-use class station | Removes both reformer and tower capability at that station | Can interrupt specialist private programming |
Ask for landed quotations built to the same commercial terms. The commercial Pilates reformer cost guide explains why unit price alone is not a full studio budget.
Anonymous German Studio Example: 8 + 4 + 1
A comprehensive boutique Pilates studio in Germany planned approximately 150–180 m² across an open group room, a semi-private area, an independent private or rehabilitation-oriented room, reception and storage. Customer and project identifiers are withheld for confidentiality.
| Zone | Equipment | Planned use |
|---|---|---|
| Open group area | 8 × WD-MS-003 | Six-to-eight-person introductory and regular reformer classes |
| Semi-private area | 4 × WD-MS PLUS | Two-to-four-person sessions, progressive spring work and focused programs |
| Private / specialist area | 1 × WD-M MAX | One-to-one instruction, posture-focused assessment, assisted stretching and supervised functional work |
| Storage and buffer area | Small-equipment storage and circulation | Keep boxes, jumpboards, rings and balls away from walkways |
The buyer did not spend the entire equipment budget on one format. Standard reformers formed the class-capacity base; tower units supported smaller sessions; one Cadillac created a dedicated private-service station. That distribution connected the equipment mix to three operating needs: group-class acquisition, higher-value private work and a broader specialist offer.
All three equipment types used maple frames and coordinated light-pink upholstery. Logo applications were specified on the frame, handles and foot straps. Individual equipment numbers supported maintenance records and after-sales tracking. The dimensions were not structurally modified.
Factory and Pre-Shipment Checks Change with the Configuration
On the factory floor, a tower or Cadillac is not treated as a standard reformer with extra parts placed beside it. The assembled structure creates new alignment, attachment and packing checks. The final inspection method depends on the exact model and signed order specification.
- All three: compare frame, carriage travel, rails, springs, ropes, upholstery, footbar, hardware and accessories with the approved order.
- Tower: check uprights, fixing points, pins, bars, spring locations and supplied safety components after assembly.
- Cadillac: inspect the full frame, cross-members, push-through bar, attachment points and all ordered accessories.
- Packing: match separate structural parts, hardware and accessories to the packing list before closing the crates.
Use the existing Pilates reformer quality inspection checklist as a starting point, then add tower- or Cadillac-specific steps for the ordered configuration.
For Studio Owners and Distributors
Studio owners
Map every planned class type to a real weekly timetable. Buy the capability instructors will use, not the maximum number of attachments available. Confirm circulation, storage, ceiling clearance, cleaning responsibility and maintenance records before finalizing quantities.
Distributors
Keep separate controlled specifications for the standard, tower and Cadillac SKUs. Accessory lists, crate counts, assembly instructions and spare parts cannot be merged into one generic “maple equipment” description. Record serial numbers against the shipped configuration.
For logo, upholstery and serialized orders, review the custom Pilates reformer OEM/ODM guide.
Studio Equipment Buying Checklist
- Class types, group sizes and private-session targets are documented.
- Each equipment type has an exact model name and approved drawing.
- Product dimensions and separate operating clearances have been checked.
- Tower and Cadillac assembled heights are confirmed for the actual room.
- Standard and optional accessories are listed separately.
- Mat conversion, removable components and safety parts are confirmed in writing.
- Installation responsibility and on-site tools are agreed.
- Crate dimensions, weights, delivery access and disposal are planned.
- Spare parts, warranty boundaries and maintenance records are agreed.
- Customization, serial numbers and packing labels match the final order.
Build the Equipment Mix Around Your Timetable
Send your floor plan, ceiling height, planned class formats, expected group sizes and preferred customization. Our team can compare the WD-MS-003, WD-MS PLUS and WD-M MAX against the exact room and prepare the available specifications, layout input and QC-document options.
Frequently Asked Questions
Is a reformer with tower the same as a Cadillac?
No. A tower adds vertical spring and bar functions to a reformer station, while a Cadillac combo uses a fuller overhead frame and usually supports a broader set of attachment positions. Exact designs and accessories vary by model.
Which option is best for group Pilates classes?
A standard reformer is often the practical starting point for repeated group classes because the stations are easier to standardize. Tower classes are possible, but room clearance, instructor workflow and accessory control become more demanding.
Does every Pilates studio need a Cadillac?
No. A Cadillac earns its space when qualified instructors use it for private or specialist programming. A group-focused studio may obtain better floor utilization from standard reformers and a smaller number of tower or Cadillac stations.
How much ceiling clearance does a reformer tower need?
Use the exact assembled height and the intended movement envelope for the ordered model. The WD-MS PLUS sheet supplied for this comparison does not state complete tower height, so it must be confirmed before layout approval.
Can a studio combine all three equipment types?
Yes. The anonymous German plan used eight standard reformers, four tower reformers and one Cadillac combo to separate group, semi-private and private-service zones.
Which machine costs the most?
A full Cadillac configuration commonly contains more structure and accessories, but no universal ranking applies to every quotation. Compare identical materials, accessories, customization, shipping terms and destination costs.
What must be confirmed before ordering a tower or Cadillac?
Confirm assembled dimensions, spring and bar list, safety components, mat conversion, removable parts, installation method, crate data, manuals, warranty scope and model-specific inspection records.
Author, Technical Review and Sources
Written by Mengying Wang with input from the P.E.Pilates manufacturing and quality-control team.
Technical review: P.E.Pilates Quality Control Team.
Product dimensions, weights, materials and packing context were checked against the supplied WD-MS-003, WD-MS PLUS and WD-M MAX technical sheets. The German studio configuration was provided as an anonymous project brief. UK and Spain photographs are separate layout examples. Reviewed August 2026. Always follow the approved specification and manual for the exact equipment supplied.
